sE Electronics RN17 Rupert Neve Small-diaphragm Condenser Microphone ไมโครโฟนคอนเดนเซอร์

sE Electronics RN17 Rupert Neve Small-diaphragm Condenser Microphone ไมโครโฟนคอนเดนเซอร์

Designed with Mr. Rupert Neve, the RN17 redefines the capabilities of an SDC.

This is the world’s first pencil microphone with a large-scale, hand-wound, ultra high performance transformer.

The second product of the sE / Rupert Neve collaboration, work on the RN17 began with a discussion between Rupert and Siwei Zou on the merits and problems of small-diaphragm condensers.

According to Siwei, “The SDC’s problem is that they have a very clear sound – the SPL is high, but the sound is very cold, not like with a large diaphragm. The quality of the transformer can make the sound much, much better – but with a small transformer, nobody can do it.”

“Rupert told me, ‘I want THIS transformer.’ I said, ‘That transformer is too big. This is a small-capsule microphone. Impossible.’ He said, ‘I want the impossible to be possible.'”

Learn More

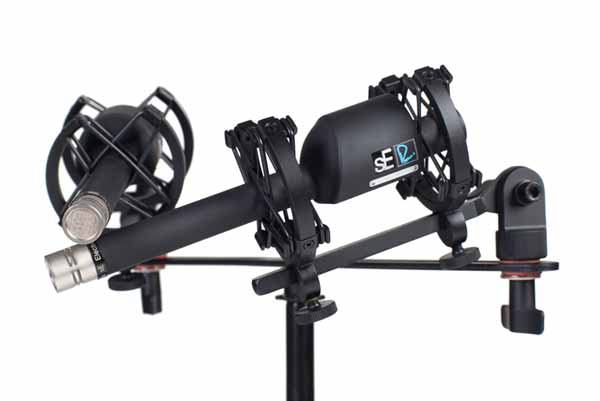

RN17 Factory-Matched Stereo Pair

When purchased as a pair, the transformers and cardioid capsules are factory-matched for perfect tolerance, guaranteeing the best possible stereo image.

This configuration also includes a precision stereo mounting bar, two shock mounts, a wooden presentation case, and empty canisters for future capsule additions. The whole setup comes packaged inside a secure flight case.

SPECIFICATIONS

Capsule Type: Hand-Crafted True Condenser

Diaphragm: 17.2mm Gold/Mylar

Directional Pattern: Cardioid (omnidirectional capsule available separately)

Frequency range: 20 Hz – 20 kHz

Impedance: 200 Ohms

Sensitivity: 5.96 mV/Pa (-44.5dB)

Sensitivity (Figure-8): 2.51 mV/Pa (-52dB)

Max SPL: 131 dB (0.5% THD @ 1kHz)

Signal to Noise Ratio: 76 dB

Self Noise: 18 dB(A) (cardioid), 15 dB(A) (omni)

Matching Connectors: XLR3F

Power requirement: 48V phantom

Weight: 320g / 11.32oz

Diameter: 44 mm (transformer), 17mm (capsule)

Length: 200 mm

Stereo Bar (Matched Stereo Pair Only)

Weight: 245 g / 8.64 oz

Dimensions: 300 x 25 mm

Max. width between mic mounts: 276 mm

Min. width between mic mounts: 58 mm
